Crawler Drill CD 110

Crawler Drill CD 110
Crawler Drill CD 110
Product Code : 01
Product Description

Crawler Drill JRD Model CD-110

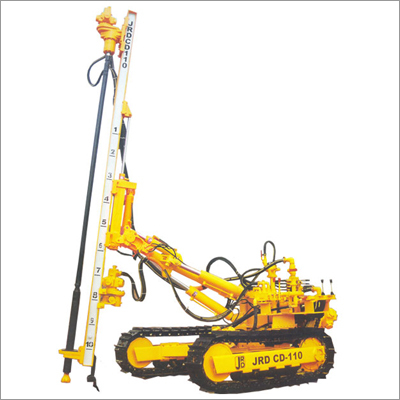

CD-110 air crawler drill is fully mechanized self-Propelled Crawler Drill does all the heavy work for you, it is most versatile piece of drilling equipment on the market today. It trams from hole to hole at the touch of a control valve, towing a portable air compressor. The drill Guide can be quickly positioned for vertical, horizontal and angle drilling position by effortless hydraulic cylinders operation and to allow the operator to achieve a wide range of drilling position. Crawler Drill CD-110 is designed to handle drill pipe O.D76mm X3mtrs long for drilling 76mm~115mm DIA holes by DTH and optional with R32/R38 DIA Steel Rod for drilling 48mm to 76mm Dia holes by Top Hammer pneumatic Drifter.

HOLE RANGE:

Down the hole Air Hammer (DTH)

Dia76mm ~ Dia115mm

Drill Pipe (for Drill Bit DIA 90mm to 115mm)

76mm O.D X 3mtrs. long Length

Drill Pipe (For Drill Bit DIA76mm)

60.3mm O.D X 1.5mtrs. long Length





Top Hammer Pneumatic Drifter-Optional

Dia48mm ~ Dia76mm

Extension Rods

R32/R38 x 3mtrs. Long Length





Rotation Unit for DTH:

BHP

6.0H.P

Speed

0~50 RPM

Torque

1125Nm (10,000 lb.in)





Feed Unit:

BHP

6.0H.P

Pull up Force

0~2200 kgf

Pull Down Force

0~2200 kgf

Max Pull up Speed

0~15m/min

Feed Type

Chain





Tramming/Propulsion:

Track Width

10” (260mm)

Tramming Speed

2.5 Km/hr

Gradeability

36 degrees

Draw bar pull

1400 kg

Traction Motors Power

8.0 H.P (on Each Track)

Track length (Ground contact)

1400 mm

Track Oscillation

± 10 Degree





Drill Guide/Boom Positioning:

Boom Lift (up, down)

45/30 Degree

Boom Swing (right, left)

45/45 Degree

Guide Swivel Horizontal (right, left)

30/30 Degree

Guide Tilt

75 Degree (two Positions)

Guide Extension

750mm





Recommended Air Compressor Capacity:

For Down the hole Air Hammer (DTH)



Free Air Delivery

450CFM to 500CFM

Working Pressure

150PSI to 200PSI

For Top Hammer Pneumatic Drifter



Free Air Delivery

500CFM to 600CFM

Working Pressure

100PSI

Dimensions & Weight



Over All Length

4770mm

Over All Width

2050mm

Height

1650mm

Ground Clearance

260mm

Total Weight

3500Kgs
