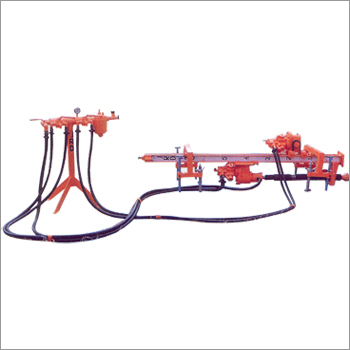

Horizontal Slim Drill

Horizontal Slim Drill
Horizontal Slim Drill
Product Code : 03
Brand Name : Model JRD SLD-100
Product Description

Slim Drill JRD Model SLD-100 (LD-4)

Slim Drill SLD-100 (LD-4) Pneumatically operated Drill Capable of Drilling down the Hole Hammer mode – ideally suitable for Drilling Lead holes for Diamond Wire Cutting of Decorative Marble, Granite Rocks etc. The drill has been specially designed for precision drilling of matching holes and ability to drill holes in both Vertical & Horizontal positions. A Ball joint is provided at the bottom of the Mast to facilitate Precision alignment for matching holes. Provided with one spike & two Anchoring Rods & Adjusting screws to maintain perfect rigidity while drilling. Light in weight, machine can be easily dismantled into four Sub-assemblies – each weighing not more then 50kgs – thus ensuring easy portability and repositioning.



HOLE RANGE:

Down the hole Air Hammer (DTH)

Dia76mm ~ Dia115mm

Max. Drilling Depth (Vertical)

30mtrs.

Max Drilling Depth (Horizontal)

20mtrs.

Minimum centre height of hole from ground

125mm

Drill Pipe (for Drill Bit DIA 90mm to 115mm)

76mm O.D

Drill Pipe (For Drill Bit  DIA76mm)

60.3mm O.D

Drill Pipe Length

1.22mtrs. (4ft)





Rotation Unit for DTH:

BHP

4.5H.P

Speed

0~50 RPM

Torque

1125Nm (10,000 lb.in)





Feed Unit:

BHP

4.5H.P

Pull up Force

0~2200 kgf

Pull Down Force

0~2200 kgf

Max Pull up Speed

0~15m/min

Feed Type

Chain





Recommended Air Compressor Capacity:

For Down the hole Air Hammer (DTH)



Free Air Delivery

12.7m3/min (450CFM)

Working Pressure

10.5kg/cm2 (150PSI)





Dimensions & Weight



Over All Height

3000mm

Width

600mm

Depth

600mm

Total Weight

610Kgs
