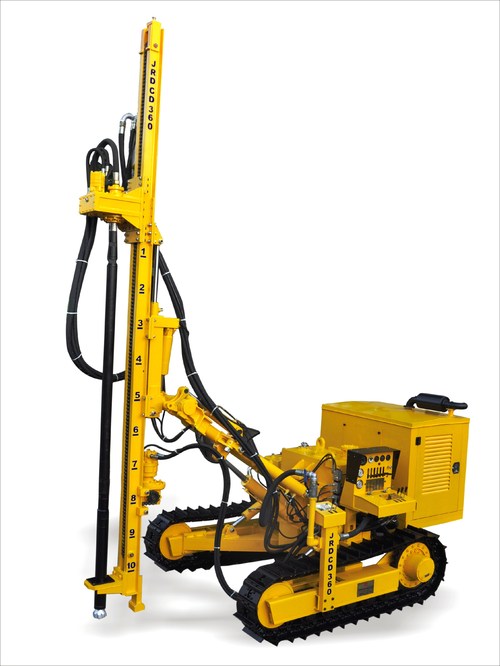

Hydraulic Crawler Drill JRD Model CD-360

Crawler Mounted Drilling Rig JRD Model CD-360 DTH Crawler Drill Hydraulically operated capable of handling 3mtrs. (10ft) drill pipe. The hydraulic system is designed for fuel efficient and high productivity capacity. All hydraulic elements like Pumps, Motors, Valves and hydraulic cylinders are adequate capacity and of reputed make. Variable displacement Hydraulic Pump with proportional Control Valve (PVG 32 Make: Sauer Danfoss) are used for Rotation Unit, Feed Unit (for fast & micro feeding) and for Self Propulsion of the Rig. The Boom is provided with a heavy duty lift and swing cylinders to provide rigidity while drilling. The Boom lift , Boom Swing ,Guide Tilt, Guide swivel and Guide Dump arrangements are through hydraulic double acting cylinders allows the operator to achieve a wide range of vertical, horizontal and angle drilling positions. All hoses can withstand high pressure and high temperature. The Hydraulic oil is fine filtered during suction and return lines in operation.



Mode of Drilling

Down the hole Air Hammer (DTH)

Hole Diameter

105~152mm (4⅛”~ 6”)

Max. Drilling Depth

36 mtrs. (120 ft)

Drill Pipe Diameter

76mm/89mm (3” / 3½”)

Drill Pipe Length

3mtrs. (10 ft)





Rotary Head

Speed

0~50 RPM

Torque

1,350 Nm (12,300 lbf.in)





Feed Unit:

Type of Feed

Chain feed

Feed Length (MAST)

5000mm

Travel Length

4000mm

Pull Down Force

0~2200 kgf

Pull Up Force

0~2200 kgf

Pull Up / Down Speed

0~15 m/min





Undercarriage System:

Max. Speed

2.0 Km/h

Gradeability

35 Degree

Track Shoe Type

Single Grouser

Track Shoe Width

260mm (10”)

Ground Pressure

0.54 kgf/cm2 (7.68 psi)

Track Oscillation

±10 Degree

Ground Clearance

260mm





Recommended Air Compressor Capacity:

Free Air Delivery

450CFM to 500CFM

Working Pressure

150PSI to 200PSI





Dimensions & Weight



Overall Length

5,200mm (17’)

Overall Width

2,200mm (7’ 2”)

Overall Height

2,400mm (7’ 9”)

Total Weight

4,500kgs (9,920 lb)
